Cartridge Filter housings
Cartridge Filter Housings are pressure vessels designed to hold one or multiple filter cartridges for removing suspended particles, sediments, rust, microorganisms, and other impurity from liquids, gases, steam, and process fluids. At Aris Filtration, we manufacture and export high-performance Cartridge Filter Housings engineered for reliable filtration, long service life, and consistent process efficiency across various industrial applications.
Industrial processes demand accurate filtration to protect equipment, improve product quality, and reduce operational downtime. As a trusted manufacturer and exporter based in Gujarat, India, Aris Filtration designs Cartridge Filter Housings using premium materials and precision engineering.
What is a Cartridge Filter Housing?
A cartridge filter housing is a strong container that holds one or more filter cartridges. It filters the process fluid by removing fine particles, bacteria, and other contaminants without stopping production.
Key Statement: A cartridge filter housing helps protect equipment by filtering contaminants from the process fluid. It is commonly used where accurate filtration and dependable performance are needed.
Why is a Cartridge Filter Housing Important?
A cartridge filter housing not only holds the filter but also helps ensure effective filtration and protects equipment from contaminants.
Key Benefits
- Removes fine suspended particles and contaminants
- Protects pumps, valves, sheets, and heat exchangers
- Improves product quality and process consistency
- Reduces equipment wear and maintenance costs
- Supports continuous industrial operations
- Suitable for high-pressure and high-temperature applications
- Suitable with multiple cartridge configurations
Key Statement: A properly designed Cartridge Filter Housing increases filtration efficiency while reducing maintenance costs and equipment downtime.
Project Gallery
Types of Cartridge Filter Housings
Aris Filtration manufactures a complete range of cartridge filter housings to meet different industrial process requirements.

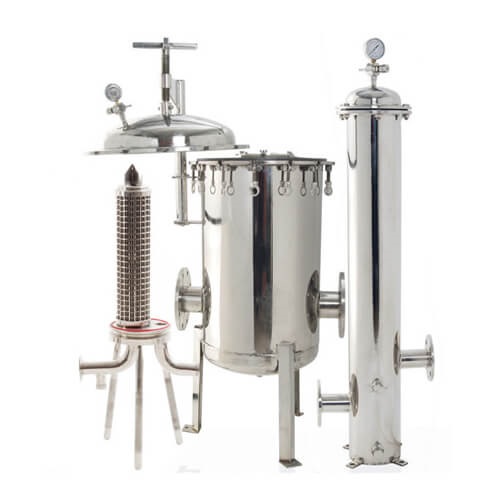

1) SS Cartridge Filter Housing
Stainless Steel Cartridge Filter Housings are among the most widely used filtration systems due to their strength, corrosion resistance, and long operational life. Manufactured using SS304, SS304L, SS316, and SS316L, these housings are suitable for demanding industrial environments where hygiene, strength, and chemical compatibility are important.
Features
- Corrosion-resistant stainless steel construction
- Mirror or matte finish options

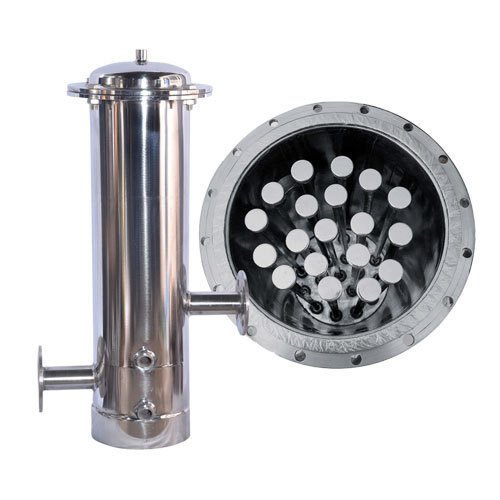

- Single and multi-cartridge designs
- Easy cartridge replacement
- Leak-proof sealing system
- High-pressure operating capability
- Low maintenance requirements
Applications
- Water treatment plants
- Pharmaceutical manufacturing
- Food & beverage processing
- Chemical industries
- Petrochemical plants
- Bio-pharma facilities
2) UPVC Filter Housing
UPVC filter housings are suitable for harsh chemical applications. They resist acids, alkalis, and chemicals while providing a lightweight and affordable filtration option.
Advantages
- Excellent chemical resistance
- Rust-free construction
- Lightweight and easy installation
- Low maintenance
- Long service life
Typical Industries
- Chemical processing
- Electroplating plants
- Water treatment
- Acid transfer systems
- Surface treatment industries
3) Inline Filter Housing
Inline Filter Housings are installed directly within pipelines to provide continuous filtration without interrupting fluid flow.
These small filtration systems are suitable for applications where limited space and continuous operation are required.
Benefits
- Continuous process filtration
- Compact pipeline installation
- Easy maintenance
- Reduced pressure loss
- Improved equipment protection
Suitable Industries
- Process manufacturing
- Chemical plants
- Paint industries
- Petrochemicals
- Water distribution systems
4) Steam Filter Housing
Steam Filter Housings are specifically engineered to remove rust particles, pipe scale, moisture, and impurities from steam systems. Clean steam improves heat transfer efficiency, protects process equipment, and supports hygienic manufacturing.
Advantages
- High-temperature resistance
- Improved steam quality
- Protection of steam valves
- Reduced maintenance
- Increased equipment life
Common Applications
- Pharmaceutical plants
- Textile processing
- Food manufacturing
- Dairy processing
- Power generation
5) Electro Plating Filter Housing
Electro Plating Filter Housings are designed to continuously filter plating solutions, ensuring consistent bath quality and improved surface finishing.
Benefits
- Maintains plating bath purity
- Improves coating quality
- Reduces contamination
- Extends chemical bath life
- Supports continuous production
Applications
- Electroplating plants
- Metal finishing
- Surface treatment facilities
- Automotive component manufacturing
Technical Specifications
| Flow Rate | 2000 m3/hr |
| Test Pre. | up to 100 kg/cm2 |
| MOC | SS316L, SS316, SS304L , SS304, MS, MSRL ,PTFE Lining, Halar Lining |
| To Suitable Size | 2.5″ Long x 1 No. Cartridge to 40″ long x 250 Nos Cartridge |
| Surface Area | 400 M2 |
| Line Size | 1/4" NB to 20" NB |
| Connection Type | BSP (F), NPT (F) Threaded, Flanged 150#, 300#, Table E, F |
| Cartridge Fitting | Pushfit, DOE, SOE, Code-7 , Flange Type |
| Type | Jacketed / Non-Jacketed |
| Finishing | Mirror Polished , Matt Finished |
What Materials are used in Cartridge Filter Housings?
Material selection depends on the process fluid, operating pressure, temperature, and chemical compatibility.
| Material | Key Advantages | Typical Applications |
|---|---|---|
| SS304 | Excellent corrosion resistance | Water treatment, food processing |
| SS304L | Improved weldability | Pharmaceutical industries |
| SS316 | Superior chemical resistance | Chemical and petrochemical plants |
| SS316L | Low carbon, high purity | Bio-pharma and hygienic processes |
| UPVC | Excellent acid resistance | Chemical processing and electroplating |
Which Industries Use Cartridge Filter Housings?
Cartridge Filter Housings are essential wherever high-quality filtration is required. They are widely used in:
- Water Treatment Plants
- Oil & Gas
- Refineries
- Petrochemical Industries
- Chemical Processing
- Mining Operations
- Pulp & Paper Mills
- Textile Manufacturing
- Paint & Ink Industries
- Dye & Intermediates
- Power Plants
- Food & Edible Oil Processing
- Fertilizer Plants
- Cement Industries
- Ceramics Manufacturing
- Sugar Industries
- Bio-Pharma
- Aeronautics
- Defence & Marine Industries
Key Statement: Cartridge Filter Housings provide micron-level filtration across industries where product purity and equipment protection are critical.
Why Choose Aris Filtration for Cartridge Filter Housings?
We are a Gujarat-based manufacturer and exporter specializing in industrial filtration solutions for liquid, gas, air, and steam applications. The company designs and manufactures Cartridge Filter Housings with a focus on performance, strength, and application-specific customization.
Why Customers Prefer Aris Filtration
- Manufacturer & exporter based in Gujarat, India
- Precision-engineered filtration systems
- Custom-built housing configurations
- Stainless steel and UPVC construction options
- Single and multi-cartridge designs
- Corrosion-resistant materials
- Reliable quality and consistent performance
- Solutions for domestic and international industries
- Technical guidance for product selection and customization
Our Cartridge Filter Housings are manufactured using high-quality materials such as SS304, SS304L, SS316, and SS316L, with designs developed in line with recognized engineering practices. Material selection and construction are customized to operating pressure, temperature, flow rate, and process compatibility, helping customers achieve efficient and reliable filtration across demanding industrial applications.
Frequently Asked Questions (FAQs)
(1)What is a Cartridge Filter Housing used for?
A Cartridge Filter Housing is used to hold filter cartridges securely and remove suspended particles, sediments, rust, bacteria, and contaminants from liquids, gases, and steam.
(2)Which material is best for Cartridge Filter Housings?
SS316 and SS316L are ideal for corrosive chemicals and hygienic applications, while SS304 is commonly used for general industrial filtration. UPVC is preferred for highly corrosive chemical processes.
(3)What is the difference between single-cartridge and multi-cartridge housings?
Single-cartridge housings are suitable for lower flow rates, whereas multi-cartridge housings handle higher flow capacities and reduce maintenance frequency.
(4)Can Cartridge Filter Housings be customized?
Yes. Cartridge Filter Housings can be customized based on operating pressure, flow rate, cartridge size, connection type, material of construction, and application requirements.
(5)How often should filter cartridges be replaced?
Replacement depends on the contaminant load, pressure drop, operating conditions, and filtration requirements. Regular inspection helps maintain optimum filtration efficiency.
