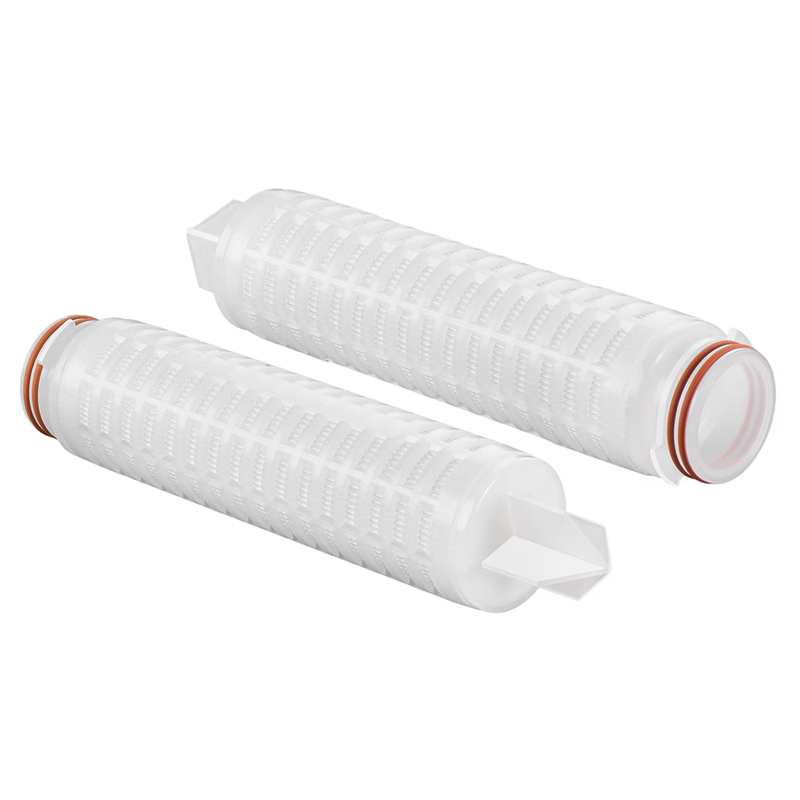

What Is a PES Pleated Filter Cartridge?

A PES Pleated Filter Cartridge is a cartridge filter that uses Polyethersulfone (PES) membrane media arranged in a pleated configuration to increase effective filtration area within a compact cartridge.

PES is a polymeric membrane material widely used where fine liquid filtration, low extractables and compatibility with demanding process streams are important. The pleated design provides a large filtration surface area, helping the cartridge handle particulate loading while maintaining efficient liquid flow.

Aris Filtration develops industrial filtration solutions using macro- and micron-filtration technologies for air, gas and liquid applications. Its product portfolio includes disposable filter cartridges, filter housings, filter bags, reusable elements, air filters and other industrial filtration products.

Key product statement: A PES pleated filter cartridge combines membrane-based fine filtration with a high-area pleated configuration for efficient particulate removal from compatible liquid streams.

Why Choose PES Pleated Filter Cartridges for Industrial Filtration?

PES membrane media can be considered when a process requires fine filtration and consistent liquid handling. The pleated configuration increases the available filtration area compared with a simple flat-media arrangement.

Key Advantages

• Fine liquid filtration: Suitable for applications requiring controlled particulate retention.
• High filtration area: Pleating increases the effective media area within the cartridge.
• Efficient flow: A larger filtration area can help reduce excessive pressure drop when the cartridge is correctly selected.
• Low hold-up volume: Cartridge construction provides a compact filtration solution.
• Broad industrial applicability: Suitable for appropriately compatible water-based and process-liquid applications.
• Convenient replacement: Disposable cartridge construction allows quick replacement when the element reaches its operating limit.
• Pre-filtration capability: Can be considered for protecting downstream membranes, equipment and process stages.
• Customizable configuration: Cartridge dimensions, fittings and filtration requirements can be selected according to the application.

Aris Filtration’s existing pleated-cartridge range highlights benefits such as high flow rate, high filtration area, low pressure drop, easy installation and fine filtration.

Where Are PES Pleated Filter Cartridges Used?

PES pleated filter cartridges can be evaluated for a wide range of industrial liquid-filtration applications where membrane media compatibility and required filtration performance match the process conditions.

Major Application Industries

Important: Final media selection should always be based on the liquid chemistry, temperature, pressure, required micron rating, flow rate and compatibility requirements of the application.

How Does a PES Pleated Filter Cartridge Work?

The liquid enters the cartridge and passes through the pleated PES filtration media. Suspended particles are retained by the membrane according to the selected filtration characteristics, while the filtered liquid continues through the downstream side of the cartridge.

The pleated structure creates a substantially larger effective filtration surface than a flat sheet occupying the same general cartridge envelope. As particulate matter accumulates, differential pressure across the cartridge can increase, indicating that inspection or replacement may be required according to the operating procedure.

Filtration Process

Unfiltered liquid → Cartridge inlet → Pleated PES membrane → Particle retention → Filtered liquid outlet

This simple configuration makes PES cartridges suitable for incorporation into cartridge filter housings and multi-stage filtration systems.

What Specifications Should You Consider When Selecting a PES Filter Cartridge?

Choosing a PES pleated filter cartridge should be based on the complete process requirement rather than micron rating alone.

Important Selection Parameters:

• Filtration rating: Select the required nominal or absolute rating according to the application and process objective.
• Cartridge length: Common industrial cartridge lengths include 10", 20", 30" and 40" in Aris Filtration’s existing pleated-cartridge offering; confirm availability for the PES configuration.
• Diameter: Select according to the compatible filter housing.
• End connection: Options may include DOE, SOE, Code-222 or push-fit configurations depending on the product design.
• Flow requirement: Cartridge sizing should account for required flow and acceptable pressure drop.
• Chemical compatibility: Verify PES compatibility with the specific process fluid and chemicals.
• Operating temperature and pressure: Confirm the permissible operating conditions for the selected cartridge construction.
• Housing compatibility: Ensure the cartridge dimensions and connection match the existing filtration housing.
• Pre-filtration: Heavily contaminated liquids may require upstream filtration to extend cartridge service life.

How Do You Select the Right PES Pleated Filter Cartridge?

A practical selection approach is to define five parameters first: fluid, contaminant, filtration rating, flow rate and operating conditions.

For example, a process engineer evaluating a cartridge for a chemical application should identify the chemical composition, temperature, concentration, suspended solids, required filtration level, available housing and desired flow rate before finalizing the cartridge.

The correct PES filter cartridge is the one that satisfies filtration performance, chemical compatibility, flow requirement, housing compatibility and operating conditions simultaneously.

Why Choose Aris Filtration for PES Pleated Filter Cartridges?

Aris Filtration is an industrial filtration manufacturer and exporter based in Gujarat, India. The company states that it provides macro- and micron-filtration solutions for industrial impurities in air, gas and liquid streams. Its customer base includes oil & gas, steel, textile, mines and minerals, cement and water-treatment sectors.

The company also states that its designs are developed with in-house innovators and international expertise and that it follows international quality and design standards. Its website identifies the company as ISO 9001:2015 certified and lists ASME, BS and DIN among design standards referenced by the company.

For buyers seeking a PES Pleated Filter Cartridge manufacturer and exporter in Gujarat, India, Aris Filtration can provide application-focused filtration support and help identify an appropriate cartridge configuration.

Get the Right PES Pleated Filter Cartridge for Your Application

Whether you require filtration for water treatment, refinery processes, mining, chemicals, textiles, oil & gas, petrochemicals, paints, inks, power plants, bio-pharma or other industrial applications, selecting the correct membrane and cartridge configuration is essential for reliable filtration.

Contact Aris Filtration for PES Pleated Filter Cartridge requirements, application guidance and customized filtration solutions.
